Category: CRL 12" x 28" Back-to-Back Tubular Straight Combination Push and Pull Handle Set

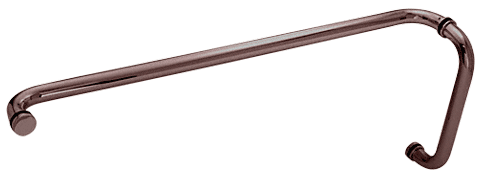

CRL Dark Bronze 12" x 28" Back-to-Back Straight Combination Push and Pull Handle Set
SKU: CM12X28DU
UPC:
$211.28
(20% off)
$176.07
Product Details:
Dual Mounting for Use With 3/8" (10 mm) and 1/2" (12
mm) Glass as Well as 1-3/4" (44.4 mm) Thick Aluminum Doors
1" (25.4 mm) Diameter Stainless Steel or Brass Tubing
Five Beautiful Architectural Finishes
This CRL Glass Mounted Straight Push/Pull Handle
Combination is available in two different sizes and many
attractive architectural finishes.
Color: Dark Bronze
Minimum Order: 1 Each
Additional Product Information:
SPECIFICATIONS:
Includes:
One Set CM12X28 Push/Pull Combination
All Required Glass Mounting Hardware for 3/8 and 1/2 inch (10 and
12 millimeter) Glass
Four Each 1-1/4 inch (32 millimeter) Diameter Matching Finish Metal
Washers and Rubber Gaskets
For Use With:
3/8 inch (10 millimeter) Glass
1/2 inch (12 millimeter) Glass
Construction:
One inch (25.4 millimeter) Diameter Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8 inch (16 millimeter) Diameter Holes,
10" (254 mm) Center-to-Center
12" (305 mm) Center-to-Center
28" (711 mm) Center-to-Center
33" (838 mm) Center-to-Center
Extra bolts available, sold separately:
TB2CH Through-Bolts for 3/8 or 1/2 inch (10 or 12 millimeter)
Glass
TB4CH Through-Bolts for 1-3/4 inch (44 millimeter) Wood or Metal
Door Frames
For the thicker doors, please, use
TB4CH bolt, which permits mounting of pulls to 1-3/4"
(44.5 mm) thick, and in majority cases even up to 2"
thick, aluminum, wood or hollow metal doors.
