Category: EDW Series Windows - Aluminum Bottom Tracks
CRL Custom Size Painted (Specify) All Electric Fully Automatic Deluxe Sliding Service Window - Aluminum Full Bottom Track
SKU: EDW1802P
UPC:
Product Details:
- Each Unit is Customized to Your Needs
- Electro/Mechanical Operation (Requires 120V AC
Only)
Includes Three Settings: Automatic, Off, Manual
- Narrow Siteline Frame
|
The CRL Custom Size All Electric Fully Automatic
Deluxe Sliding Window is a single sliding service
window perfect for drive-thru applications such as fast food
restaurants, pharmacies, banks, or anywhere a high quality
automatic service window is required. Each custom window is
fabricated to fit your opening. All windows are sent out fully
assembled and ready for installation. Window includes full bottom
track.

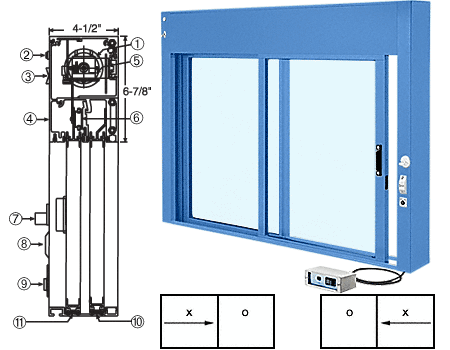

Standard Features (refer to above image on
left)
1. 24V DC-Electric Motor
2. Master Push-to-Reset Fuse
3. Master Power On/Off Switch
4. Removable Access Panel
5. Microprocessor Logic Control Module
6. Heavy-Duty Anti-Lift Ball Bearing Carrier
7. Thumbturn Hook Throw Deadlock
8. Locked/Unlocked Indicator
9. Push Button Manual Open/Close Switch
10. Vinyl Track (No-Metal-to-Metal Rubbing)
11. Poly-Pile Weatherstripping with Fin
Safety Features:
- 24V DC System
- UL/CSA Approved Class 2 Transformer
- Auto Reverse Feature if Window is Blocked
- Soft Close Feature in "Pinch Zone"
- Mechanical Positive Slip Clutch.
Specifications:
- Materials: Aluminum Extrusions, Stainless Steel Control Panel
Assembly.
- Configuration: XO or OX from Clerkside
- Power Requirements: Hardwire to 120V AC Power Source.
- Rough Opening: Add 1/2 inch (12.7 millimeter) to Width, 1/4
inch (6.4 millimeter) to Height.
- Controls: Infrared Sensing Device and an Automatic/Off/Manual
Switch Enclosed in a Stainless Steel Box, Not Attached to Window,
Mounted Separately by Installer.
GLAZING OPTIONS:
- 1/4 to 1/2 Inch (6 to 12 millimeter) Tempered, Laminated or
Tinted Glass
- 1/2 Inch (12 millimeter) Insulating Glass
OTHER OPTIONS:
- Multiple Infrared Sensing Devices
- External Transformer
- Special Function Programming
