Product Details:

Custom Made
Manufactured to Your Specification
Also Available in Six Architectural Finishes

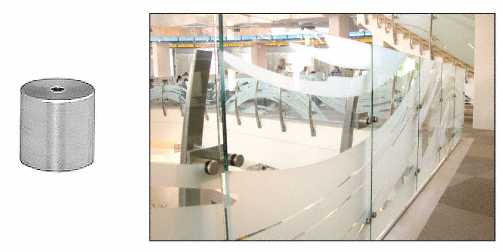

CRL 2-1/2 Inch Diameter Standoff System are perfect for attaching heavy glass, granite, and marble to the top of cabinetry.

Custom Standoff Bases:
If the overall length of the base is three inches (75 millimeters) or less, the standoff will be drilled and tapped the entire length of the base. If over three inches, the standoff will be drilled and tapped at a depth of one inch (25 millimeters) on each end. The thread size will be as follows: 1/2 inch (12 millimeters) is 10-24; 3/4 inch (19 millimeter) is 1/4-20; one inch (25 millimeter), 1-1/4 inch (31 millimeter), 1-3/4 inch (44 millimeter) and two inch (50 millimeter) is 5/16-18.
Custom Cap Assemblies:
The standard thickness will be 1/4 inch (6 millimeters) unless otherwise specified and will have a one inch (25 millimeter) screw threaded to be compatible with the matching Standoff Base. Vinyl washers are provided.

Color:       Brushed Stainless

Diameter: 2-1/2 in (63.5 mm)
Length:    2 in (50.8 mm)

Available Finishes : Polished Stainless, Brushed Stainless, Satin Chrome, Polished Brass, Brushed Brass and Standard Powder Coat Colors.
