Product Details:
- Available for Glass-to-Glass or Glass-to-Wall
Installations
- For use With or Without an Overhead Concealed
Closer
- Custom Length
|

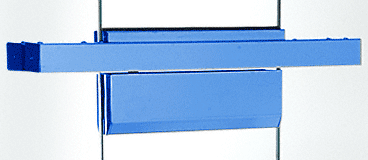

CRL Floating Headers for Overhead Concealed Door
Closers were designed to allow the installation of
single or double doors off of glass sidelites, with a transom
above. Stock Floating Headers are fabricated for use in 1/2 inch
(12 millimeter) glass-to-glassinstallations, and are prepared to
accept CRL Overhead Concealed Door Closers and a 1/2 inch (12
millimeter) thick glass transom. Custom Floating Headers cover the
rest of the offered configurations, including Headers in custom
lengths, glass-to-wall configurations, and Headers prepped for
surface mounted magnetic locks, magnetic shear locks, a surface
mounted top pivot, a walking beam pivot or an overhead concealed
door closer. Headers measure 4 inches x 1-3/4 inches (101.6 x 44.5
millimeter).
