Category: CRL Manual Bi-Fold Projected Service Windows
CRL Custom Fabricated Size and Finish Manual Projected Bi-Fold Service Window
SKU: BFW2C
UPC:
Product Details:
- Select From Manual, Semi-Automatic and Fully Automatic
Operation
- Available in Stock or Custom Sizes, and Stock or Custom
Finishes
|
CRL Bi-Fold Service Windows are
perfect anywhere a high quality bi-folding window is required.
Features include two panels that simultaneously open outward
towards the customer and a burglar bar for extra security.

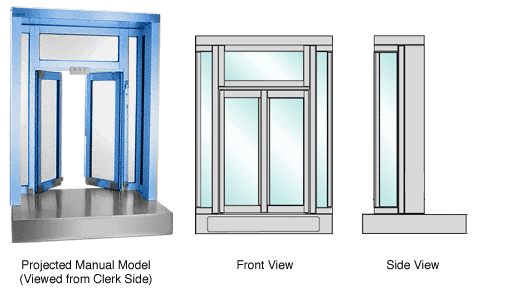

Projected and Flush Mount models are available in three different
configurations: MANUAL - Both panels move simultaneously as either
panel is manually operated. SEMI-AUTOMATIC - Opening the window is
achieved by pushing on the hip activated slide bar. Step away from
the window and the two panels automatically close. FULLY AUTOMATIC
- Opening the window is as easy as stepping in front of the
built-in infrared sensing device. Simply step away and the two
panels automatically close. The Automatic/Off/Manual Switch
provides three different settings: AUTOMATIC operates with the
infrared sensing device; MANUAL operates with a jamb mounted push
button; OFF defeats all functions and closes the two panels. UL/CSA
Approved Class 2 Transformer. Custom sizes and custom paint colors
are available by special order. Contact us at (888) 663-9830 in the
U.S.,, . Specifications:
- Materials: Aluminum Extrusion; Pile Weatherstrip; Glazing
Vinyl; Stainless Steel Shelf or Stainless Steel Sill
- Glazing: 1/4 inch (6 millimeter) Clear Tempered Glass
- Stock Finishes: Satin Anodized or Duranodic Bronze
- Bi-Fold Configuration: Fully Automatic; Self-Closing;
Manual
- To Determine Rough Opening: Add 1/2 Inch (12.7 millimeter) to
Width, 1/4 Inch (6.4 millimeter) to Height
