Product Details:
- Supported by Glass Side Panels
- Creates an Even Sight Line When Used With CRL Door
Rails
- Custom Sizes and Configurations Available
- Six Standard Finishes Available: Satin Anodized, Dark
Bronze Anodized, Black Anodized, Polished Stainless, Brushed
Stainless, and Polished Brass
- Custom Finishes Available on Special
Order
|

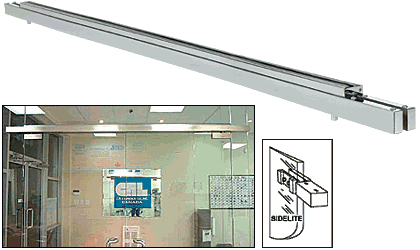

The 1-7/8 x 1-5/8 inch (47.6 x 88.9 millimeter) CRL
Custom Narrow Floating Header with Surface Mounted Top
Pivots work with PH20 Series and PH21 Series Top Door Patch Hardware
Fittings, and with all 3/8 or 1/2 inch (10 or 12 millimeter)
Heavy Glass Door Rails. When
used with CRL Door Rails, you get an even sight line, as
the width of the Narrow Header matches the width of the Door Rail.
For use with Free Swinging
Bottom Pivots or Floor
Closers. These Headers are custom fabricated per your
specifications. Note: Length and installation type
must be specified when ordering. For additional assistance
regarding other possible configurations, contact us at (888)
663-9830, extension 7700, or by
e-mail.
