Product Details:
- Manufactured to Your Specifications
- Available in Many Finishes
|

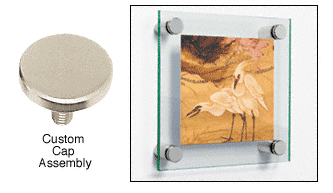

This CRL Custom Cap Assembly is made
to match your Custom Standoff Base, and is now available from the
Manufacturing Division of C.R. Laurence Co. As a result of customer
requests for special lengths and finishes of Standoff Products, CRL
now provides custom fabrication of 1/2 inch (12 millimeter), 3/4
inch (19 millimeter), one inch (25 millimeter), 1-1/4 inch (31
millimeter), 1-3/4 inch (44 millimeter) and two inch (50
millimeter) standoff base and cap assemblies. Available Finishes :
Polished Stainless, Brushed Stainless, Satin Chrome, Polished
Brass, Brushed Brass and Standard Powder Coat Colors.
- Custom Standoff Bases:
If the overall length of the base is three inches (75 millimeters)
or less, the standoff will be drilled and tapped the entire length
of the base. If over three inches, the standoff will be drilled and
tapped at a depth of one inch (25 millimeters) on each end. The
thread size will be as follows: 1/2 inch (12 millimeters) is 10-24;
3/4 inch (19 millimeter) is 1/4-20; one inch (25 millimeter), 1-1/4
inch (31 millimeter), 1-3/4 inch (44 millimeter) and two inch (50
millimeter) is 5/16-18.
- Custom Cap Assemblies:
The standard thickness will be 1/4 inch (6 millimeters) unless
otherwise specified and will have a one inch (25 millimeter) screw
threaded to be compatible with the matching Standoff Base. Vinyl
washers are provided.
CRL Standoff Systems offer a complete
range of mounting accessories that you can order in any quantity
necessary for your project. For installation techniques or design
assistance using CRL Standoffs, contact the us at (888) 663-9830,
Ext. 777, .
