Product Details:

• Custom Fabricated to Your Building's Specifications
•

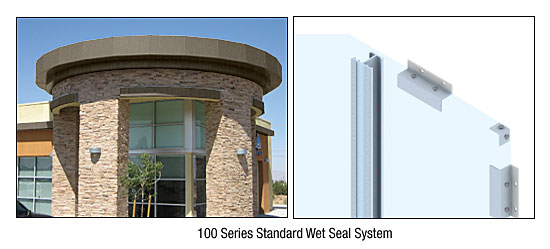

  CRL's Series 100 Standard Wet Glaze System utilizes intermediate clips and accommodates rout-and-return composite panels or solid metal panels with a return lip. A typical installation consist of a barrier strip placed against the building substrate and covered with a 1/2 inch (12 millimeter) hat channel, this provides the attachment point for the staggered intermediate clips to attach to. The panels come with the clips already attached, so all that is necessary is to align the panel up on the hat channel and check to be sure the 1/2 inch (12 millimeter) joint is correct. If everything is all right the clips can then be secured to the hat channel with self-drilling Tek Screws. The next step is to roll-in the foam backer rod to the proper depth and seal the joints with silicone sealant. CRL's Series 100 Standard Wet Glaze System is the preferred system for small jobs or jobs with a lot of intersections or termination points, because it allows for adjusting the joint width slightly to accommodate for job site conditions. These conditions often occur in column covers, canopies, decorative features and jobs with a lot of small details. CRL's Technical Sales Staff will be available to you during the entire installation process should any questions arise. On the following pages we will show the panel materials available for the system and detailed connection drawings for all the attachment options.




• Size: Custom
• Color: Brushed Bronze
