CRL Custom Bone White Standard Series Wall Panel System
Category: Just Arrived!
CRL Custom Bone White Standard Series Wall Panel System
SKU: EWS100CBW
UPC:
Product Details:
- Custom Fabricated to Your Building's Specifications

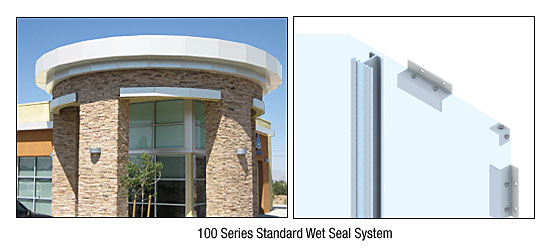

CRL's Series 100 Standard Wet Glaze
System utilizes intermediate clips and accommodates
rout-and-return composite panels or solid metal panels with a
return lip. A typical installation consist of a barrier strip
placed against the building substrate and covered with a 1/2 inch
(12 millimeter) hat channel, this provides the attachment point for
the staggered intermediate clips to attach to. The panels come with
the clips already attached, so all that is necessary is to align
the panel up on the hat channel and check to be sure the 1/2 inch
(12 millimeter) joint is correct. If everything is all right the
clips can then be secured to the hat channel with self-drilling Tek
Screws. The next step is to roll-in the foam backer rod to the
proper depth and seal the joints with silicone sealant.
CRL's Series 100 Standard Wet Glaze
System is the preferred system for small jobs or jobs
with a lot of intersections or termination points, because it
allows for adjusting the joint width slightly to accommodate for
job site conditions. These conditions often occur in column covers,
canopies, decorative features and jobs with a lot of small details.
CRL's Technical Sales Staff will be available to you during the
entire installation process should any questions arise. On the
following pages we will show the panel materials available for the
system and detailed connection drawings for all the attachment
options.
- Size: Custom
- Color: Bone White
