CRL Custom Aluminum Square Base Shoe With Satin Brass Cladding and Drilled With Hole Pattern D
Category: Just Arrived!
CRL Custom Aluminum Square Base Shoe With Satin Brass Cladding and Drilled With Hole Pattern D
SKU: B5SDSBC
UPC:
Product Details:
- Typically Used as the Base Channel for Glass Railing Systems or
Windscreens

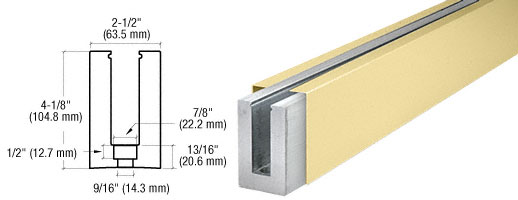

This CRL B5S Series Standard Square Aluminum Base
Shoe is used as the base channel for glass railing
systems. It can be clad in several choices of architectural
finishes. The most critical component in a railing system is the
proper attachment of the Aluminum Base Shoe to the substrate. CRL
has engineered and tested a variety of attachment methods, and has
developed an acceptable combination of drilling patterns and
fasteners. A printed brochure with Instructions, Installation
Hints, Cleaning, and Refinishing techniques is available.
NOTE: 240 inch (6.10 meter) Extrusion Only (without holes) cannot
be used for the Dry Glaze System unless the Aluminum Base Shoe is
fabricated to the above tested and approved hole and counter bore
pattern. The Dry Glaze System requires that the attachment holes be
counter bored so that no part of the fastener protrudes above the
base of the channel opening.
