CRL Custom Aluminum Smoke Baffle Base Shoe With Satin Brass Cladding for 1/2" Glass
Category: Just Arrived!
CRL Custom Aluminum Smoke Baffle Base Shoe With Satin Brass Cladding for 1/2" Glass
SKU: B5BSBC
UPC:
Product Details:
- For Fabricating Almost Invisible Smoke Curtains from 1/2" (12
mm) Glass
CRL Smoke Baffle Aluminum Base Shoe is
designed to provide an almost invisible 1/2 inch (12 millimeter)
tempered glass smoke curtain. Many of today's fire codes require
large offices or retail areas to be broken down into smaller, more
manageable areas that can be monitored by smoke detectors. This is
the specific application for smoke baffles or curtains. Smoke
curtains work to retain smoke in a specific area of a specified
square footage. Some sprinkler systems are activated by a smoke
alarm, so sectioning off areas through the use of smoke curtains

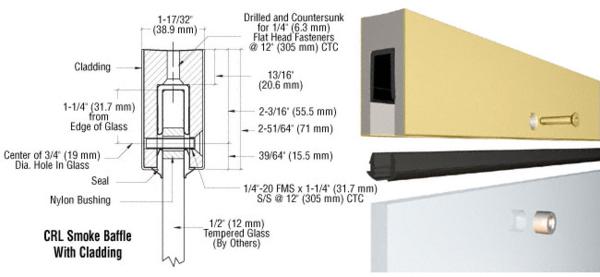

can prevent unnecessary sprinkler activation. Extruded aluminum
Smoke Baffle Base Shoe simply attaches to the ceiling structure so
the glass can hang straight down. The glass is secured with screws
going through nylon grommets that fit into 3/4 inch (19 millimeter)
holes drilled in the glass on 12 inch (305 millimeter) centers. A
glass fabrication template is included. Cladding in several
architectural finishes.
- Glass Attachment: Requires 3/4 in. (19 mm) Holes
- Length: Custom
- Ceiling Attachment: Requires 1/4 in. (6.3 mm) Flat Head
Fasteners Every Foot
- Color: Satin Brass
