Product Details:
- For Fabricating Almost Invisible Smoke Curtains from
1/2" (12 mm) Glass
- Glass is Mechanically Secured With Fasteners and
Grommets
- Custom Drilling, Mitering, and Cutting Services
Available
|

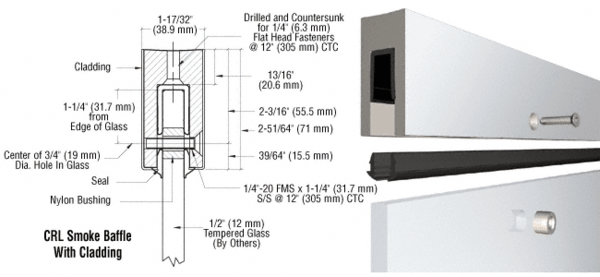

CRL Smoke Baffle Aluminum Base Shoe is
designed to provide an almost invisible 1/2 inch (12 millimeter)
tempered glass smoke curtain. Many of today’s fire codes require
large offices or retail areas to be broken down into smaller, more
manageable areas that can be monitored by smoke detectors. This is
the specific application for smoke baffles or curtains. Smoke
curtains work to retain smoke in a specific area of a specified
square footage. Some sprinkler systems are activated by a smoke
alarm, so sectioning off areas through the use of smoke curtains
can prevent unnecessary sprinkler activation. Extruded aluminum
Smoke Baffle Base Shoe simply attaches to the ceiling structure so
the glass can hang straight down. The glass is secured with screws
going through nylon grommets that fit into 3/4 inch (19 millimeter)
holes drilled in the glass on 12 inch (305 millimeter) centers. A
glass fabrication template is included. Cladding in five
architectural finishes.
- Glass Attachment: Requires 3/4 in. (19 mm) Holes
- Length: Custom
- Ceiling Attachment: Requires 1/4 in. (6.3 mm) Every Foot
- Color: Polished Stainless
