Category: CRL Cologne Series Glass-to-Glass Mount Hinges

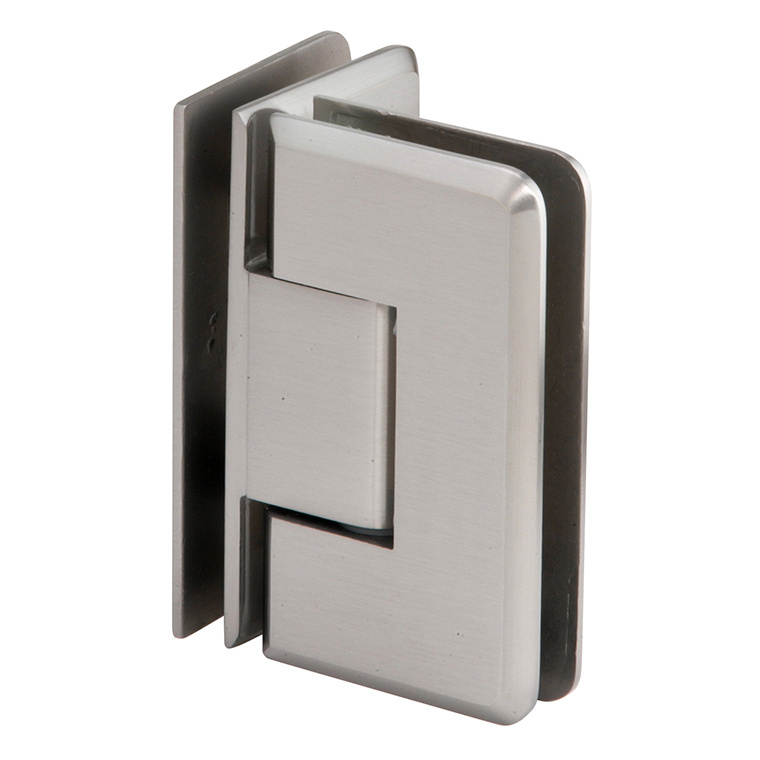

CRL Cologne 092 Series Brushed Nickel 90° Glass-to-Glass Hinge
SKU: C0L092BN
UPC:
$158.35
(20% off)
$131.96
Product Details:

Accommodates 3/8" to 1/2" Glass
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass
The CRL Cologne Series of
professional hinges is designed to accommodate 3/8 to 1/2 inch (10
to 12 millimeter) glass. Available in both Wall Mount and
Glass-to-Glass styles, it provides design flexibility. Cologne
Series Hinges are constructed of solid brass with all moving parts
(pins and springs) in stainless steel. Two strategically placed
pins inside the hinge provide template options, and satisfy two
schools of thought for mounting shower door hinges. It allows the
Cologne Hinge to be used with it's own CRL "mouse-ears"
cut-out, or in some cases fit competitive "mouse-ear"
cut-outs. On the other hand, to enable increased adjustability, the
two pins can be removed which allows the Vienna Hinge to fit it's
own CRL rectangular shape, square cornered cut-out, or in some
cases, fit competitive rectangular shaped, square cornered
cut-outs.
Color: Brushed Nickel
Minimum Order: 1 Each
Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters)
the hinge will hold up to 110 pounds (50 kilograms) with a maximum
width of 36 inches (914 millimeters).
Using three hinges with 3/8 or 1/2 inch glass (10 or 12
millimeters) the hinge will hold up to 140 pounds (63 kilograms)
with a maximum width of 36 inches (914 millimeters).
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears"
Cut-out
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of Closed Position
Includes: One Hinge, Gaskets, Screws and Template
