Product Details:

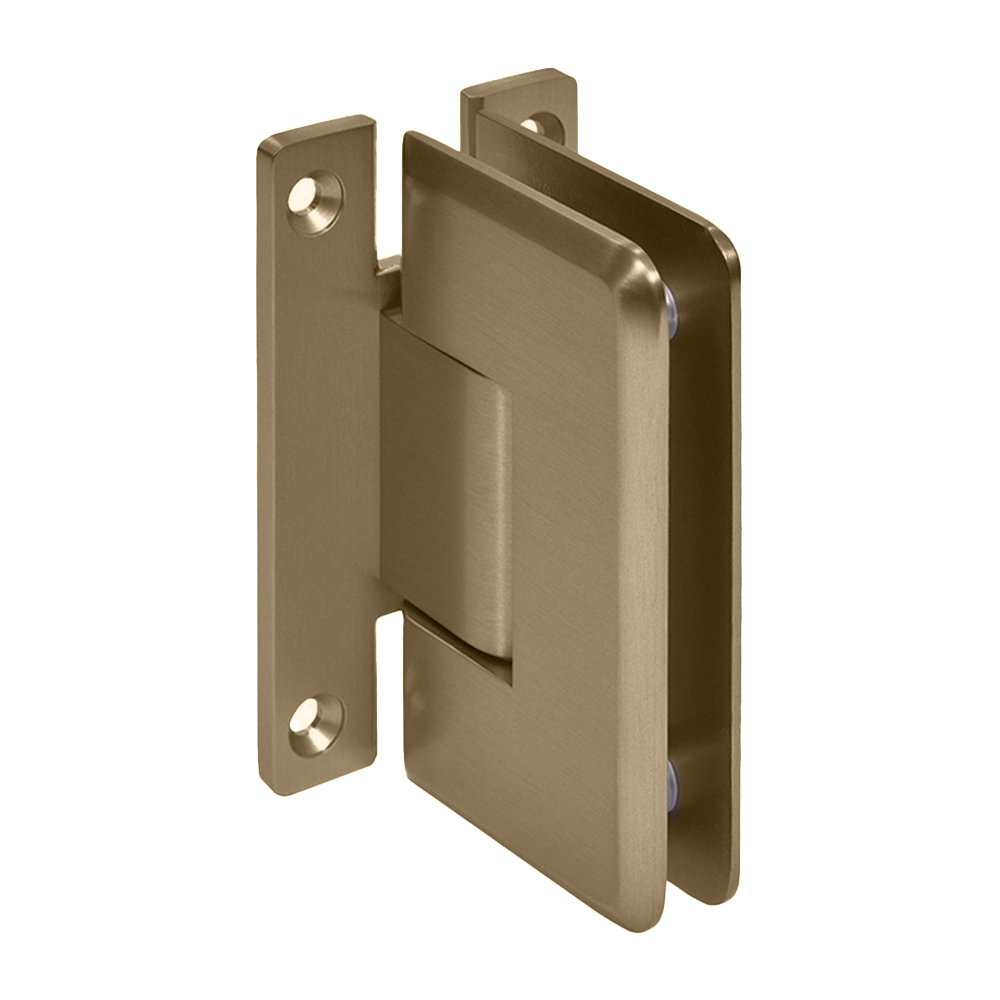

The CRL Cologne Series of professional hinges is designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Cologne Series Hinges are constructed of solid brass with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. It allows the Cologne Hinge to be used with it's own CRL "mouse-ears" cut-out, or in some cases fit competitive "mouse-ear" cut-outs. On the other hand, to enable increased adjustability, the two pins can be removed which allows the Cologne Hinge to fit it's own CRL rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs. Three Year Warranty

Color: Dark Brushed Bronze

Minimum Order: 1 Each

Additional Product Information:
Using two hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters) the hinge will hold up to 110 pounds (50 kilograms) with a maximum width of 36 inches (914 millimeters).

Using three hinges with 3/8 or 1/2 inch glass (10 or 12 millimeters) the hinge will hold up to 140 pounds (63 kilograms) with a maximum width of 36 inches (914 millimeters).

Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears" Cut-out
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of Closed Position
Includes: One Hinge, Gaskets, Screws and Template
