Category: CRL 180º Split Face and "Y" Inline Clamps

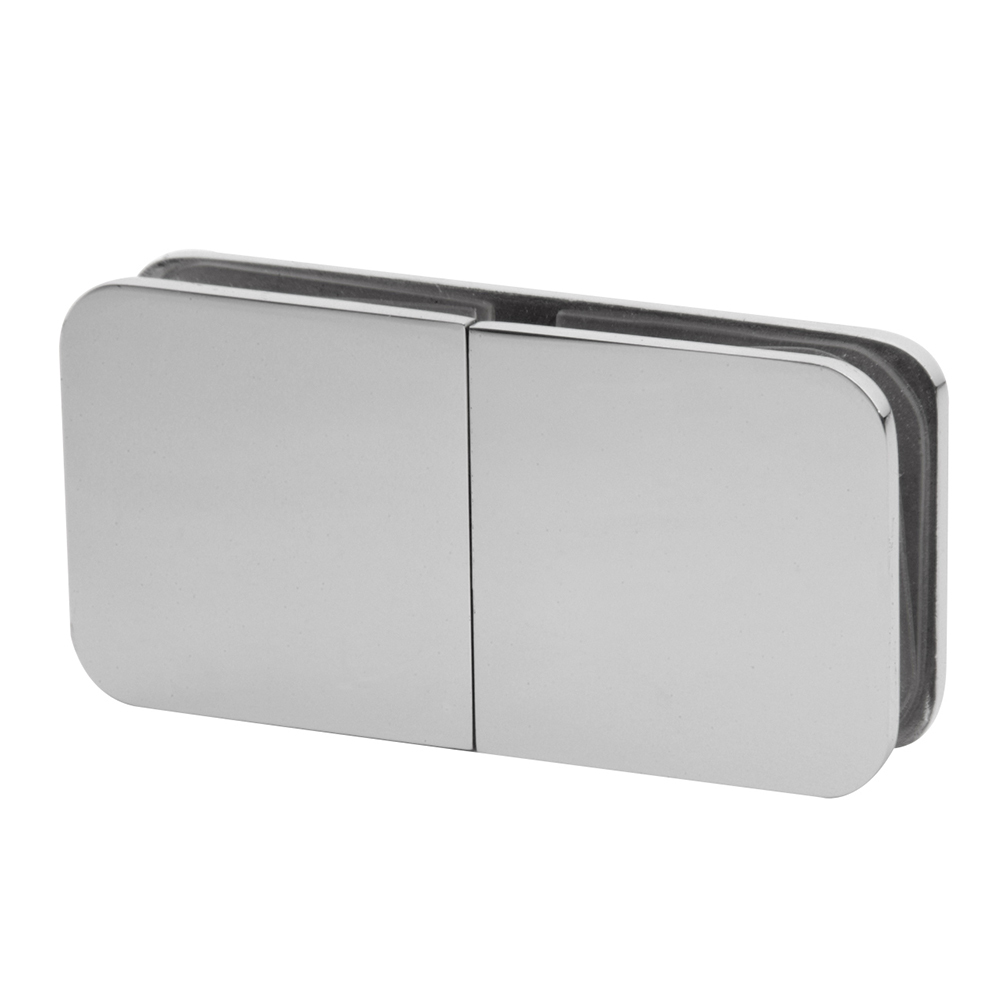

CRL Polished Chrome Traditional 180 Degree Split Face and "Y" Inline Glass Clamp
SKU: GCB182CH
UPC:
Product Details:

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Solid Brass
This dual purpose
CRL Traditional Style 180
Degree Split Face and "Y" Inline Glass
Clamp can be used to connect glass panels inline, or
as a "Y" Clamp to fasten glass panels flush with edge of
marble or tile walls. Solid brass Clamp includes extra screw for
use in "Y" configuration. An additional set of gaskets is
required for 5/16 inch (8 millimeters) glass.
Color: Polished Chrome
Width: 3-1/2 in (89 mm)
Height: 1-3/4 in (44.5 mm)
Minimum Order: 1 Each
SPECIFICATIONS
Material: Solid Brass
Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
Hole Size Required: 5/8 or 3/4 Inch (15.9 or 19.1 millimeter)
Includes: Mounting Screws and Gaskets
