Product Details:

Spring Activated Plunger, Locks without Key

Simple to Install

The CRL Chrome Track Plunger Lock installs easily on sliding glass doors with track assembly.

It can be installed at the top or bottom of the door. The spring-activated design permits locking by pushing the plunger without using a key.

Comes with lock, ferrule, and two keys.

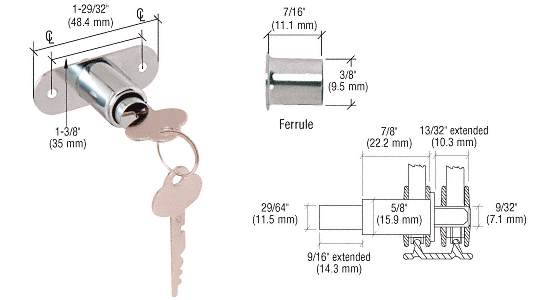

Color:              Chrome Finish

Cylinder Size:  41/64 in x 7/8 in (16.27mm x 22.22mm)

Plunger Depth: 7/16 in (11.11mm)

Back Plate:     5/8 in x 1-7/8" (15.87mm x 47.62mm)

Mounting Holes (center-to-center): 1-3/8 inches (35.4 millimeters)

All Keys are keyed alike

If the 981 Lock is used with H-Bar Shoe Cat. No.'s D610, D5610 or MC610, the glass will require notching.
If the LK610 H-Bar Shoe is used, no notching of the glass is required.
