Product Details:

Precision Machined and Finished for Quality Appearance
Designed for 3/16" (5 mm) to 1/4" (6 mm) Glass

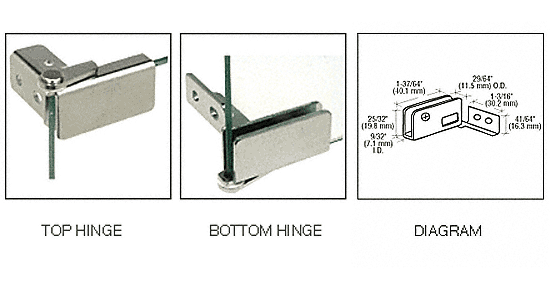

This CRL Surface Mount Glass Door Hinge is for use when doors are to be mounted on front surface of cabinet, installed into the side walls of the cabinet.

Color: Chrome

Minimum Order: 1 Pair

Wood mounting screws are not included but can be ordered separately. Use CRL Black Screws, Brass Screws, or Chrome Screws.

Our full selection of Display Hardware lends itself to the fabrication of elegant display cabinets for stereo systems, fine china, curios, knick knacks, etc. All pieces are precision machined and finished for consistent quality appearance. Design simplicity gives you flexibility in use, making possible any number of compartment combinations. Luxurious black, brass and chrome finishes complement any type of wood, formica or glass cabinet components. All components are made to fit 3/16 inch (5 millimeter) to 1/4" (6 mm) glass. Maximum door dimensions are 18 inches (457 millimeters) wide x 39 inches (991 millimeters) high.

General Glass Cutting Dimensions for CRL Surface Mount Stereo Cabinet Hinges

• Glass Height: Opening Plus 5/16 inches (7.9 millimeters)

• Single Door Width: Opening Plus 3/4 inch (19 millimeter)

• Double Door Width: Opening Divided by two, Plus 11/32 inch (8.7 millimeter)

  Packaged in pairs.
