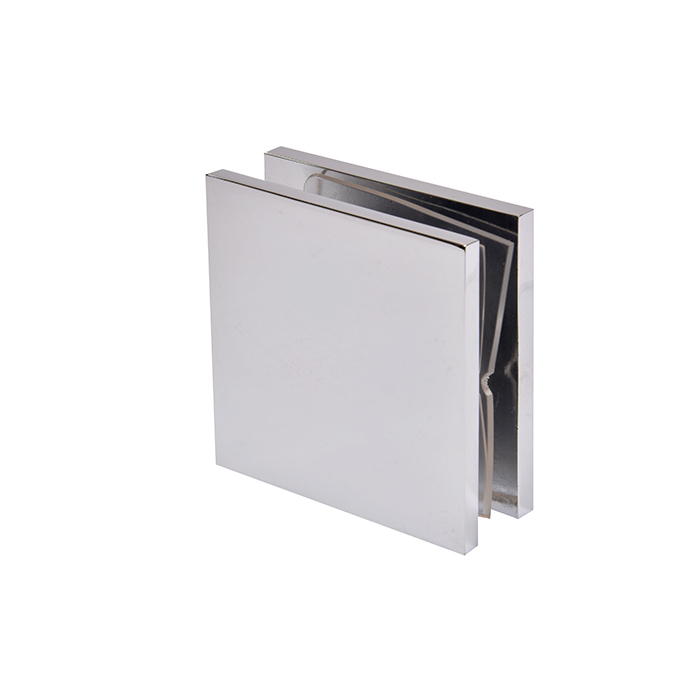

CRL Polished Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp
CRL Polished Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp | SCU4CH
Category: CRL Oversized Square Fixed Panel U-Clamp
CRL Polished Chrome Square Style Hole-in-Glass Fixed Panel U-Clamp
SKU: SCU4CH
UPC:

$22.34 (20% off)

$18.62

Product Details:


For 3/8 to 1/2" (10 to 12 mm) Glass
Solid Brass

CRL Square Style Hole-in-Glass Fixed Panel U-Clamps feature sharp corners and come in a variety of finishes. One mounting screw per clamp is included. Clearance between the glass and the wall is 5/32 to 3/16 inch (4 to 4.8 millimeter). They perform the same function as our Standard Square Wall Mount Clamps. The glass fabrication difference between the two clamps is that the Standard Wall Mount requires a v-notch and the Fixed Panel Clamp requires one hole.

Color:  Polished Chrome
Width: 2 in (51 mm)
Height: 2 in (51 mm)

Minimum Order: 1 Each

The Fixed Panel Clamp is recommended for 3/8 to 1/2 inch (10 to 12 millimeter) thick glass installations where a hole drilling measurement of 1-1/2 inches times the glass thickness is required by the Temperer (from the edge of the glass to the closest edge of the hole).

Requires drilling 5/8 or 3/4 inch (16 or 19 millimeter) hole.
