Category: CRL Square 180 Degree Glass-to-Glass Clamps
CRL Polished Chrome Square 180 Degree Glass-to-Glass Clamp
SKU: SGC180CH
UPC:
Product Details:
For 3/8" to 1/2" (10 to 12 mm)
Glass
Solid Brass
Available in Several Beautiful Finishes
CRL Square Style 180 Degree Glass-to-Glass
Clamps have sharp squared off corners. They can be
used to connect two fixed glass panels meting inline. Clamps are
designed to clamp 3/8 to 1/2 inch (10 to 12 millimeter) glass fixed
transom or inline panel installations in frameless shower
enclosures.

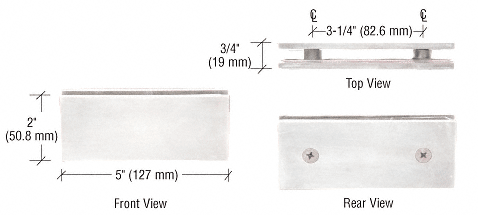

Drawings and templates are available.
Color: Polished Chrome
Width: 5 in (127 mm)
Height: 2 in (50.8 mm)
Minimum Order: 1 Each
Specifications
Material: Forged Solid
Brass
Glass Thickness Range: 3/8 to 1/2 Inch (10 to 12 millimeter)
Fabrication Required: 3/4 Inch (19 millimeter) Holes for
Glass-to-Glass Clamps, Notch for Wall Mount Clamps
Includes: Mounting Screws (for wall clamps) and Gaskets
