Category: CRL Cable Display System Components for up 3/8 in

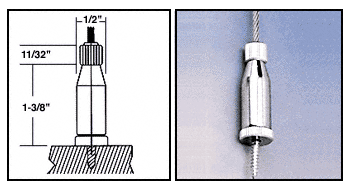

CRL Chrome Plated Long, Round Floor Base Fitting for the Cable Display System
SKU: CB88
UPC:
Product Details:

Attractively Designed to
Attach to Wood Flooring or Laminate Base
Available in Several
Finishes
The
CRL Chrome Plated, Long, Round Floor Base Fitting for
the Cable Display System has a set screw clamping system
which allows fast tensioning of the cable system. The Long, Round
Floor Base Fitting screws into a floor or a wood laminate base and
gives the fixture designer options in terms of base fittings since
the Short Round Floor Base
Fitting also performs the same function.
Color: Chrome
Diameter: 1/2
in (12mm)
Barrel Height: 1-3/8 in
(35mm)
Important
Note:
WEIGHT LIMITATIONS: When
properly installed, each column (4 cables) can bear a total weight
of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20
lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger
Pipe Base Fittings are properly anchored and used as ceiling
attachments, each column (4 cables) can bear a total weight of 40
lbs. (18kg.).
