Product Details:

Extremely Functional Fitting Can be Used on Floor, Wall or Ceiling

Available in Several Finishes

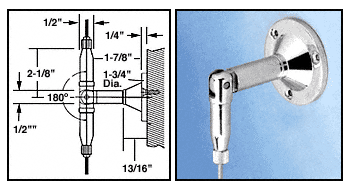

The CRL Chrome Plated Hanger Pipe Base Fitting for the Cable Display System rotates 180° as is one of the most versatile parts of this system allowing it to be used on the ceiling, floor or wall. Just mount, insert cable and tighten.

Color:                  Chrome Plated Finish

Base Diameter:    1-3/4 in (44mm)

Hanger Diameter: 1/2 in (12mm)

Additional Product Information:

The Cable Display System is a combination of slim stainless steel cables and other very attractively designed hardware components that, once combined with glass shelves, creates a "frameless look" that emphasizes the products being display. When installed, the shelf positions can easily be repositioned to change the look and function as needed.

Important Note:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.

If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).
