Category: CRL Cable Display System Components for up 3/8 in
CRL Chrome Plated Fixed Single Shelf Brackets for the Cable Display System
SKU: CB92
UPC:
Product Details:

Securely Holds Panels in
Horizontal Position
For 1/4" and 5/16" Panels
Available in Several
Finishes
The CRL Fixed Single Shelf
Bracket for the Cable Display System have a highly efficient and
secure set screw clamping system. The Fixed Brackets are very
easily installed by inserting the stainless steel cable end thru
the Bracket lower push tube. When the "push tube" is depressed, the
Bracket can be adjusted to the desired position on the cable. The
Brackets will stay firmly and securely in place on the 2mm cable. To re-position the
Brackets, simply depress the "push tube" and slide the Bracket up
or down on the cable. The Brackets are designed to accommodate 1/4
to 5/16 inch (6-8mm) panels.
Color: Chrome Plated Finish

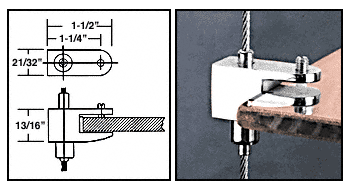

Width: 21/32 in (16mm)
Length: 1-1/2 in (38mm)
Height: 13/16 in (20mm)
Important
Note:
WEIGHT LIMITATIONS: When
properly installed, each column (4 cables) can bear a total weight
of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20
lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger
Pipe Base Fittings are properly anchored and used as ceiling
attachments, each column (4 cables) can bear a total weight of 40
lbs. (18kg.).
