CRL Chrome Plated Fixed Base Floor Fittings for Cable Display System
SKU: CB80
UPC:
Product Details:

Efficiently Attaches the
Stainless Steel Cables to the Floor or Laminate Base
Available in Several
Finishes

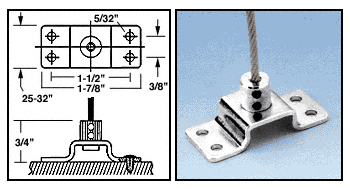

The CRL Chrome
Plated Fixed Base Floor Fitting for the Cable Display
System is designed to install directly to the floor or
wood base and anchor the 2 millimeter stainless steel cables. The
Fixed Base Floor Fitting has four fastening positions which provide
maximum support for the cables. The cable is inserted into the
base fitting and a set-screw clamp attached to the end of the cable
which securely captures the cable and locks it into the base
fitting and permits the cables to be quickly and efficiently
tightened.
Color: Chrome
Plated Finish
Base Width: 25/32 in (20mm)
Base Length: 1-7/8 in (47mm)
Overall Height: 3/4
in (19mm)
Important
Note:
WEIGHT LIMITATIONS: When
properly installed, each column (4 cables) can bear a total weight
of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20
lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger
Pipe Base Fittings are properly anchored and used as ceiling
attachments, each column (4 cables) can bear a total weight of 40
lbs. (18kg.).
