Category: CRL Cable Display System Components for up 3/8 in
CRL Chrome Plated Drilled Glass Shelf Brackets for the Cable Display System
SKU: CB108
UPC:
Product Details:

Securely and Efficiently
Holds Panels to Cables
Available in Several
Finishes
Easy to Assemble and
Install
The
CRL Chrome Plated Drilled Glass Shelf Brackets for the
Cable Display System will securely and efficiently hold
your 1/4 inch (6 millimeter) or 5/16 inch (8 millimeter) panels
onto the stainless steel cables. A 1/2 inch (12 millimeter) drilled
hole is required in your glass, acrylic or wood panels to enable
the installation of the Drilled Shelf Brackets which unscrew to
permit the shelves to be installed. When the cables have been
inserted thru the lower half of the fitting, thru the panel, and
thru the upper half of the fitting, the Bracket can be screwed
together.
Once installed, the
shelves can easily be re-positioned by depressing the lower part of
the Bracket and sliding the shelf to the desired
position.
Color: Chrome
Plated

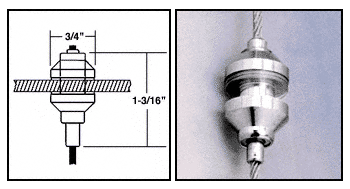

Diameter: 3/4 in (19mm)
Length: 1-3/16 in
(30mm)
Important
Note:
WEIGHT LIMITATIONS: When
properly installed, each column (4 cables) can bear a total weight
of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20
lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger
Pipe Base Fittings are properly anchored and used as ceiling
attachments, each column (4 cables) can bear a total weight of 40
lbs. (18kg.).
