Category: CRL Cable Display System Components for up 3/8 in
CRL Chrome Plated Ceiling Mount Fittings for Cable Display System
SKU: CB74
UPC:
Product Details:

Permits the 2mm Stainless
Steel Cable to be attached to a Drop Ceiling
Available in Several
Finishes
This
CRL Chrome Plated Ceiling Mount Fitting for the Cable
Display System is an integral component of the Cable
Display System since it provides a method of fastening the 2mm Cables into a drop

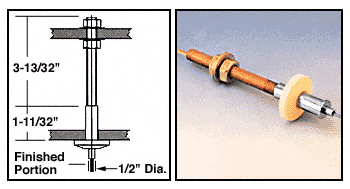

ceiling. The Ceiling Mount Fitting comes with one washer and two
nuts which attach to the sub-ceiling above the acoustical tile. The
"push tube" adjustment part of the fitting is mounted underneath
the tile.
Once installed, the 2mm
stainless steel cable is inserted into the fitting and pulled
tight.
Color: Chrome
Plated
Diameter: 1/2 in
(12mm)
Important
Note:
WEIGHT LIMITATIONS: When
properly installed, each column (4 cables) can bear a total weight
of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20
lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger
Pipe Base Fittings are properly anchored and used as ceiling
attachments, each column (4 cables) can bear a total weight of 40
lbs. (18kg.).
