Category: CRL Cable Display System Components for up 3/8 in
CRL Chrome Plated Adjustable Single Shelf Brackets for the Cable Display System
SKU: CB100
UPC:
Product Details:

Securely Holds Panels with Angle Adjustment
Options
For 1/4" and 5/16" Panels
Available in Several Finishes

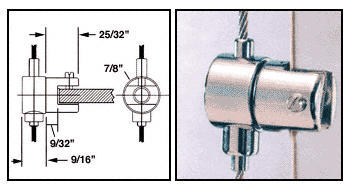

The CRL Adjustable Single Shelf
Bracket for the Cable Display System has a highly
efficient and secure set screw clamping system that permits the
installed panel to be angled or tilted to enhance your display or
for signage purposes. To adjust the brackets to the desired angle,
the "push tubes" are depressed and the brackets are moved down the
cable to achieve the necessary angle. For signage purposes, only
two cables need to be installed at the proper distance apart to
accommodate the width of your sign or decorative panel.
Color: Chrome Plated Finish
Diameter: 7/8 in (22mm)
Additional Product
Information:
The Fixed Brackets are very easily
installed by inserting the stainless steel cable end thru the
Bracket lower push tube. When the "push tube" is depressed, the
Bracket can be adjusted to the desired position on the cable. The
Brackets will stay firmly and securely in place on the 2mm cable.
To re-position the Brackets, simply depress the "push tube" and
slide the Bracket up or down on the cable. The Brackets are
designed to accommodate 1/4 to 5/16 inch (6-8mm) panels.
Important Note:
WEIGHT LIMITATIONS: When properly
installed, each column (4 cables) can bear a total weight of up to
80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs.
(9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger Pipe Base
Fittings are properly anchored and used as ceiling attachments,
each column (4 cables) can bear a total weight of 40 lbs.
(18kg.).
