Product Details:

Our First Series of Frameless Shower Door Hinges That Are Notch-Free
Order The Top Pivot Mounting Option to meet Your Needs
Three Mounting Kit Options; Soffit Sleeve Mount Kit, Header Mount Kit,
and Wall Block Mount Kit

CRL Madrid Series of Hinges gives the installer three mounting options, making it the most versatile of all our Pivot Hinges. And because there are no holes to drill, or notches to cut in the glass, the Madrid is also one of the easiest-to-mount hinges you will ever use. The Madrid's pivot can be mounted in a Header, in a Wall Block, or in a Soffit Sleeve. Take your choice, they're all very simple and provide for a quick installation. Madrid is about choices, and you'll come to discover it's elegantly simple lines will blend with most any bathroom decor. There are Madrid Hinge Kits and Mounting Kits in several of our most popular finishes.

Color: Chrome

Minimum Order: 1 Each

Additional Product Information:
NOTE: To use Madrid properly you must select one Mounting Kit for each Hinge Kit ordered.

SPECIFICATIONS:
Glass Thickness: 3/8 Inch (10 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Precise Closing to Zero Degrees
Maximum Door Size: Width 36 Inch (914 millimeter); Weight 120 Pounds (54 kilograms)
Includes: Mounting Hardware

Choose from Three Popular Pivot Mounting Options:
Header Mount Kit Includes: 98 Inch (2.49 meter) Piece of Header Extrusion, 36 Inch (.91 meter) Piece of Filler Insert, Header Pivot Receiver, Clear Vinyl, Screws, Washers, and Anchors.

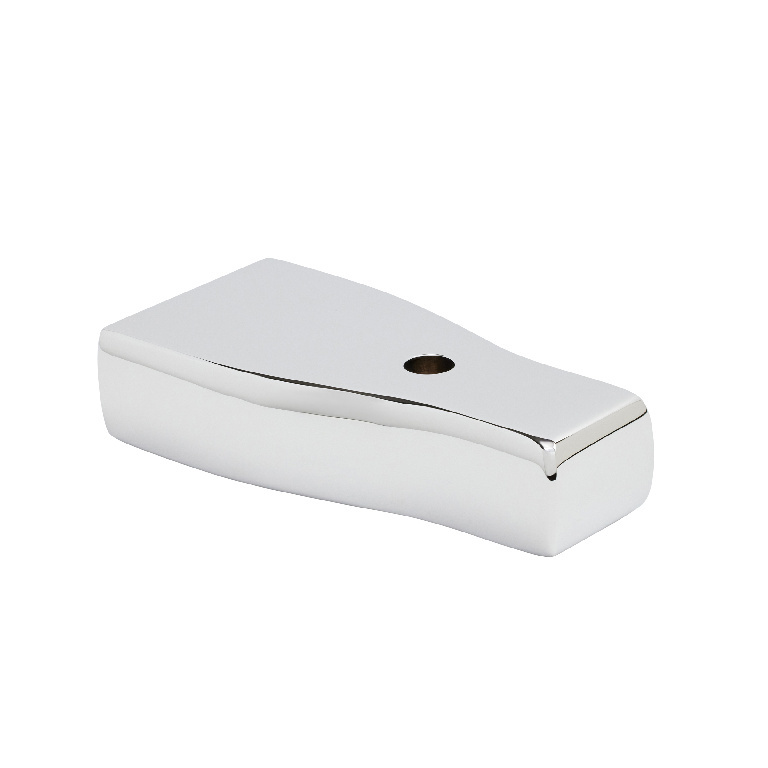

Wall Block Mount Kit Includes: Wall Block and Block Mounting Bracket, Screws, and Anchors.
Soffit Sleeve Mount Kit Includes: Soffit Sleeve, Mounting Screw. Sleeve requires 5/8 Inch (16 millimeter) Hole.
