Category: CRL Glass Cabinet Door Hinges
CRL Chrome Finish Showcase Pivot Hinges for 1/4" Glass - Package
SKU: EH236
UPC:
Product Details:
Features Positive Positioning Keeper
Also Available in Brass Finish
Easy to Install

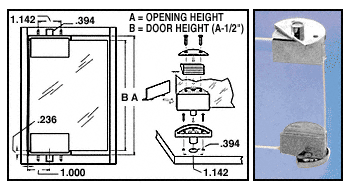

CRL Chrome Showcase Pivot Hinges for 1/4
Inch Glass have a unique, practical working action.
When doors are closed, a positive positions keeper maintains them
at a true 90°. They are also available in Brass finish. The
Glass Door Pivots swing smoothly in an insertable bushing. Note:
The maximum recommended door width is 22 inches (559 millimeters).
Maximum weight should not exceed 25 pounds (11.3 kilograms).
Minimum clearance required is 1/4 inch (6.3 millimeters) both top
and bottom.
Color: Chrome Finish
Depth: 1-1/16 in (27 mm)
Width: 1-1/2 in (38.1 mm)
Height: 7/8 in (22.2 mm)
Minimum Order: 1 Package
CRL Showcase Pivot Hinges package contains: One each upper and
lower hinge, two screws for mounting the plate, one "L" plastic
gasket and one flat plastic gasket and two pivot bushings.
One pair per package.
