Category: CRL Cologne 044 and 544 5º Pre-Set Wall Mount Offset Back Plate Hinges

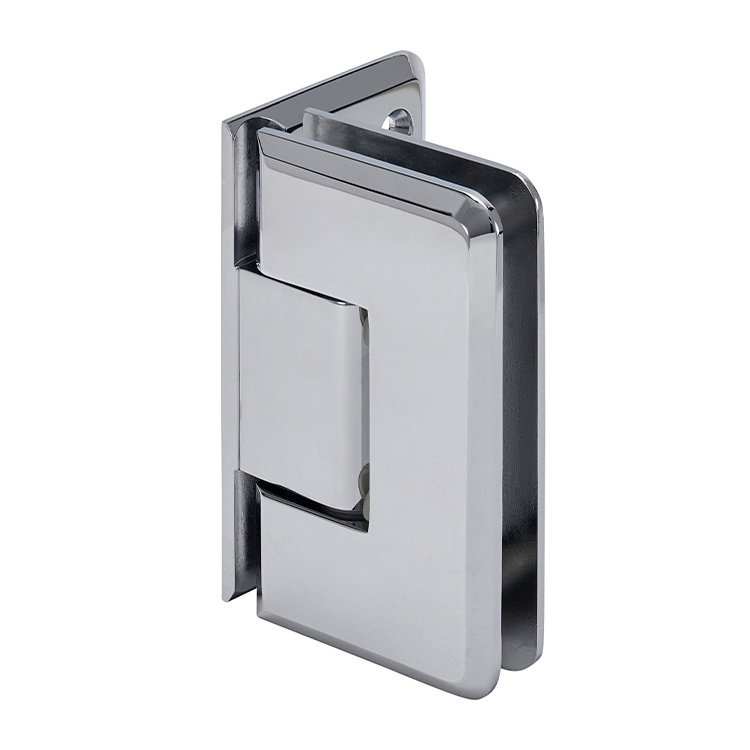

CRL Chrome Cologne 544 Series 5º Pre-Set Wall Mount Offset Back Plate Hinge
SKU: C0L544CH
UPC:
$136.75
(20% off)
$113.96
Product Details:

Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
Available in Several Beautiful Finishes
Three Year Warranty
The CRL Cologne Series of professional hinges is able to
accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A variety
of styles, including Wall Mount and Glass-to-Glass types, gives
design flexibility. They are made of solid brass with all moving
parts (pins and springs) in stainless steel. Cologne Hinges are
self-centering, and contain a Reversible 5º Pivot Pin. In addition,
Custom Pivot Pins are available to accommodate "off
angle" installations.
Color: Chrome
Standard Reversible Pivot Pin: Each Cologne Hinge contains a
Reversible Pivot Pin. One side of the Pin is marked 90 degrees. The
opposite side is marked 85 degrees. Offset Models come with the Pin
pre-set to 85 degrees (5 degree tighter closure into the shower
interior). The Pin can be rotated (not flipped upside down) to
activate the other side. Standard Cologne Hinges come with the 90
degrees side activated.
Using two hinges with 3/8 and 1/2 inch glass (10 and 12
millimeters) the hinge will hold up to 110 pounds (50 kilograms)
with a maximum width of 36 inches (914 millimeters).
Using three hinges with 3/8 and 1/2 inch glass (10 and 12
millimeters) the hinge will hold up to 140 pounds (63 kilograms)
with a maximum width of 36 inches (914 millimeters).
Specifications:
Glass Thickness: 3/8 to 1/2 inch (10 to 12 millimeter) Tempered
Safety Glass
Construction: Solid Brass
Fabrication Requirements: Optional Square or "Mouse Ears"
Cut-out
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Self-Centering when within 15 Degrees of Closed
Position
Includes: One Hinge, Gaskets, Screws and Template
