Product Details:

For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Solid Brass

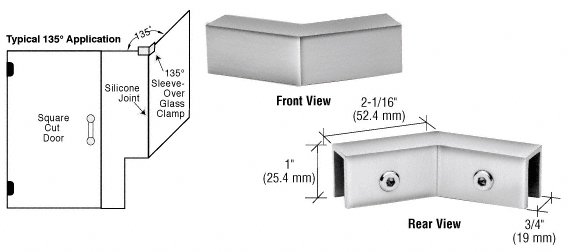

CRL 135 Degree Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the two glass panels in a 135 degree position while silicone applied silicone in the joint cures.

Color:              Polished Chrome
Width Per Leg: 2-1/16 in (52.4 mm)
Height:             1 in (25.4 mm)

Specifications:
Glass Thickness: 5/16 to 1/2 inch (8 to 12 millimeter) Tempered Safety Glass
Construction: Solid Brass
No Fabrication Required: (Clamps tighten using nylon tipped Allen screws)
Includes: Gaskets
