Product Details:

Available in Several Attractive Finishes
Constructed of Solid Brass
For Glass Thicknesses of 5/16" to 1/2"

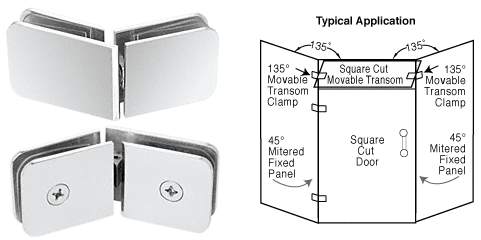

These CRL 135° Movable Transom Clamps have attractive mitered edges, and will match hinges offering a similar design. Used to connect two fixed glass panels meeting at 135°.

Color:   Polished Chrome

Minimum Order: 1 Each

SPECIFICATIONS
Material: Solid Brass
Glass Thickness Range: 5/16 to 1/2 Inch (8 to 12 millimeter)
Hole Size Required: 5/8 or 3/4 Inch (15.9 or 19.1 millimeter) Each Panel.
Includes: Gaskets

Maximum Transom Size is 12" (300 mm) High and 30" (750 mm) Wide. An Additional set of gaskets must be ordered for 5/16" (8 mm) glass.
