Product Details:
Finished Cover Plate Included
Lateral Adjustable Door Arm
Non-Handed

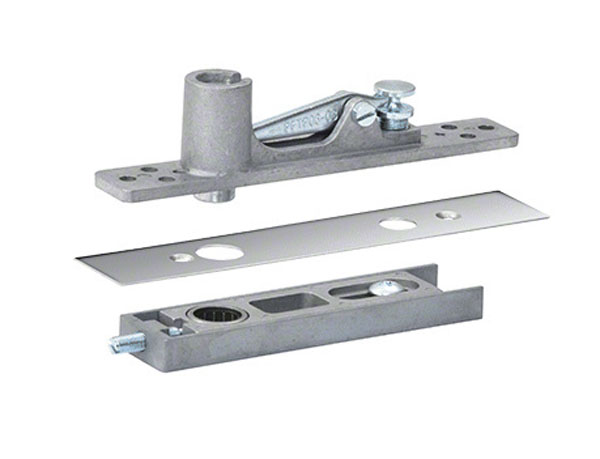

The CRL Center-Hung "Walking Beam" Top Pivot is
intended for use with Floor Closers and center-hung free-swing
floor pivots. The door arm provides lateral adjustment to assure
that the door is plumb. These Pivots are fully mortised and
non-handed. Pivot pin is 19/32" (15 mm) diameter and accommodates
top door clearance up to 1/2"(13 mm). Supplied with finished cover
plate.
Bottom Door Rail Depth: 1/2" Inch
Finish: Polished Stainless Steel
Handing: Non-Handed
Pivot Top: Yes
Pivot Type: Center Hung
