Category: CRL End-Load Arms for Concealed Door Closers

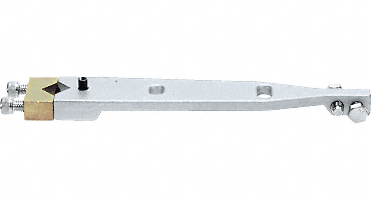

CRL Center-Hung Diamond Style Spindle Engagement End-Load Arm Assembly for 5/8" Depth Top Door Rail
SKU: CRL8010H
UPC:
Product Details:
Designed for Use with CRL's Diamond Spindle
Rertrofit Overhead Concealed Closer
Can be used with Pre-1998 Kawneer® Husky® Type
Closers
For 5/8" (16 mm) Depth Top Door Rail
The
CRL Center-Hung Diamond Style Spindle
Engagement End-Load Arm Assembly for 5/8" Depth Top Door
Rail is designed as an original replacement arm for
existing pre-1998 Kawneer® Husky® Style arms. This
replacement arm can be used with the CRL Retrofit Diamond Spindle
Overhead Concealed Closer and original design Kawnweer®
Husky® Type Closers without requiring alteration to the
original door prep. The arm is used for Center-Hung applications
when the door top rail is 5/8 inch (16 millimeter) deep. Centering
adjustment is accomplished by two bolts in the swing end of the
arm. Lateral adjustment can not be made with this arm.
Minimum Order: 1 Each
