Product Details:

Available in Several Beautiful Finishes
3 Year Warranty

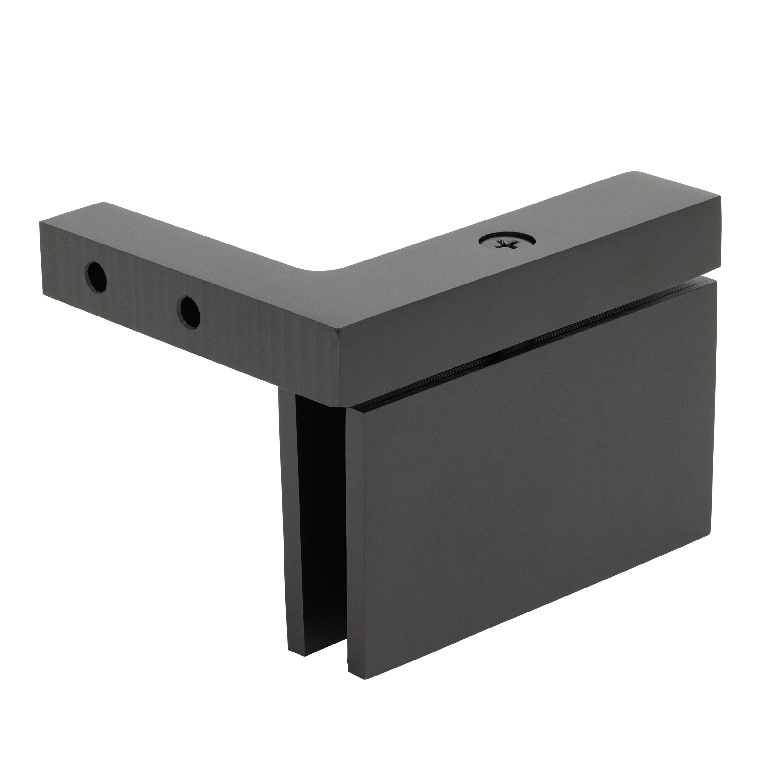

This CRL Cardiff Series Pivot Hinge is designed for use with 5/16 to 3/8 inch (8 to 10 millimeter) tempered safety glass, and provides an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Cardiff Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional 5º Pre-Set Pivot Pin Sets may be ordered separately. The Cardiff Series is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling.

Color:  Oil Rubbed Bronze

Additional Product Information:
SPECIFICATIONS:
Glass Thickness: 5/16 to 3/8 inch (8 to 10 millimeter) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. CAR01 Series can be mounted floor and ceiling, or floor and header
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15O of closed position Cut-Out Required
Includes: Gaskets, Screws and Glass Fabrication Dimensions

Important Note:
NOTE: Do not exceed maximum door weight or width when choosing proper quantity of hinges.
