Product Details:

Designed to Tighten the 2mm Cables

The CRL Cable Turnbuckle for the Cable Display System is designed to create tension on the 2mm stainless steel cables. Used with the CB118 Cable Loop Securing Clamps, the hooks are connected to the Ringed Anchor Fitting (CB78) at one end and the Cable Loop Securing Clamp at the other end. Tension to the cable is applied by twisting the Turnbuckle.

Color:                    Nickel Plated

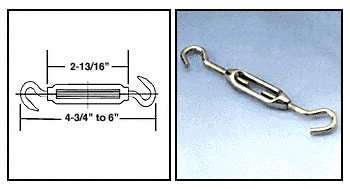

Adjustable Length: 4-3/4 to 6 in (120-152 mm)

Important Note:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.).

Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.

If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).
