Category: CRL Cable Display System Components for up 3/8 in
CRL Cable Loop Securing Clamp for Cable Display System
SKU: CB118
UPC:
Product Details:

Used with the Ringed
Anchor Fitting When the Cable System is Mounted to a Concrete Wall
Surface
Easy to
Install
The CRL Cable Loop
Securing Clamp for the Cable Display System is designed to
be used with the CB78 Ringed Anchor Fitting and
the CB116 Cable
Turnbuckle. When the Cable Display System requires installation
into a concrete surface, alternative anchoring fittings are
necessary to securely hold the cables. The Cable Loop Securing
Clamp is the integral link between the cable and either the
Turnbuckle or the Ringed Anchor Fitting.

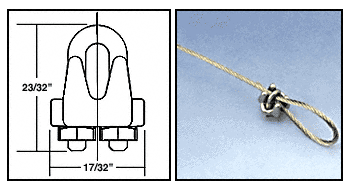

Width: 17/32 in (13mm)
Height: 23/32 in
(18mm)
Additional Product
Information:
One each clamp is the
minimum order. (Cable shown not included)
Important
Note:
WEIGHT LIMITATIONS: When
properly installed, each column (4 cables) can bear a total weight
of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20
lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount
Fittings.
If CB112 and CB114 Hanger
Pipe Base Fittings are properly anchored and used as ceiling
attachments, each column (4 cables) can bear a total weight of 40
lbs. (18kg.).
