Category: Z-Series Round Type Radius Base Zinc Glass Clamps
CRL Brushed Stainless Z-Series Round Type 1-1/2" Radius Base Stainless Steel Clamp for 3/8" Glass
SKU: Z15310BS
UPC:
Product Details:

•For 3/8" (10 mm) Glass
•The Ideal Clamp for Use on Mezzanines, Partitions, Railings and
Windbreaks
•Base Metal: Stainless Steel
•Steel Pin Available for Additional Glass Support
•Tested and Engineered to Meet and Exceed Code Standards
Our CRL Z-Series Round Type Radius Base Glass
Clamps are designed to be used on glass thickness of
1/4" up to 1/2" (6 to 12 mm), and are available in either
zinc or stainless steel. The clamps are the perfect solution for
partitions, railings, windbreaks and countless other projects.

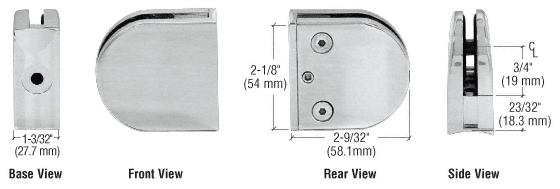

Color: Brushed Stainless
Width: 2-9/32" (58.1 mm)
Height: 2-1/8" (54 mm)
Tube Diameter: 1-1/2" (38.1 mm)
For securing the Z-Clamp to thin wall tubing (less than 1/8"),
use CRL’s ZB0LT Socket Head Cap Bolt and ZRNUT
Rivet-Nut. For installation, drill a 1/2" (12 mm) hole,
insert the riv-nut, align the clamp with the bolt and drilled hole
and start threading the bolt into the nut which results in
compressing the nut.
NOTE: 1/2" (12 mm) hole is required if using
the steel pin (included with the clamp) for additional glass
support. Replacement gaskets are available by ordering CRL Cat. No.
Z14RG.
SPECIFICATIONS:
Glass Thicknesses: Models for 1/4" to
1/2" (6 to 12 mm).
Base Design: Radius.
For Use With: 1-1/2" or 2" (38.1 or 50.8
mm) Diameter Round Tubing.
Material: Choice of Zinc Constructed or Stainless
Steel. Stainless Steel or Powder Painted Zinc Clamps are
recommended for more durability in exterior applications.
Glass Fabrication: For 1/4" (6 mm),
5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12
mm) diameter hole required if using provided steel pin for glass
support. For 1/2" (12 mm) Thick Glass: 9/16" (14 mm)
diameter hole required if using provided steel pin for glass
support.
Includes: Rubber Gaskets and Steel Pin (for
optional use) with Grommet.
