Category: CRL Wall Mount Transom Patch Hardware
CRL Brushed Stainless Wall Mount Transom Curved Patch
SKU: CPF34BS
UPC:
Product Details:
Works With 2-11/16" (68 mm)Pivot Setback Door Patch
Fittings
1NT300 Insert Included

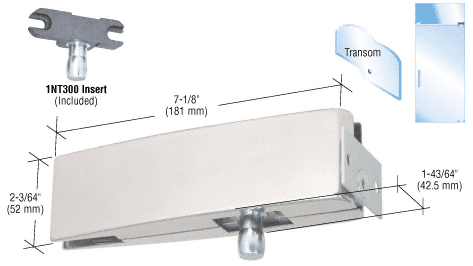

The CRL Wall Mount Transom Curved Patch is used to support a
transom from a side jamb. It comes with a 1NT300 Top Insert for
door mounting. The insert can be removed on the non-hinged side,
allowing for a double swinging door. A 1NT306 Transom Patch Door
Stop Insert can be used to create a one way door.
Color: Brushed Stainless
Length: 7-1/8 in. (181 mm)
Height: 2-3/64 in. (52 mm)
Minimum Order: 1 Each
Additional Product Information:
Glass Fabrication: One 3/4 inch (19 millimeter) Diameter Hole and
Corner Notch.
