Product Details:
- 16 Configurations to Choose From
- Wall or Posted Mount
- Four Handing Options
- Stainless Steel, Anodized, and Painted
Finishes
- Every Swinging Gate is Custom Fabricated to Your
Requirements
- Optional Locks Available
|

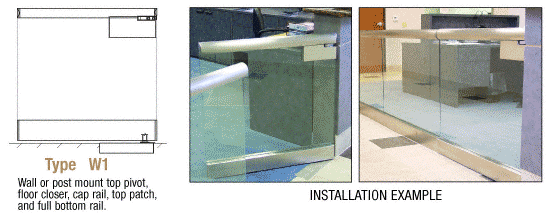

We have developed a CRL Series of Swinging
Gates for commercial or residential use, either alone
or with our HRS Glass Rail System. The gates are an offshoot of our
Wedge-LockTM Door Rail System and can be combined with our HRS Cap
Rails. The bottom rail can be widened to match the width of an
adjacent fixed railing Base Shoe. The upper patch fitting is
modified to allow for mounting to a stainless steel bracket, and
may also be modified to accommodate a Cap Rail. The top of the Gate
pivots on a heavy-duty ball bearing, while the bottom pivots on a
floor mounted commercial door closer. The floor closer always
returns the Gate to the closed position, and the closing speed is
adjustable. All Swinging Gates are custom fabricated to your
specifications. Available in either Wall Mount or Post Mount
models.
NOTE: Available by custom order only.
Most orders can be fabricated in five business days at our Los
Angeles, California manufacturing facility. Please contact
us for more information or a quote.
