Product Details:

Compact Design for Minimal Obstruction
Complete With Mounting Plate
Designed for ½” and ¾”(12 and 19 mm) Tempered
Glass Applications
Brushed or Polished Stainless Finishes Available
Designed for Wood or Steel Mounting Attachment

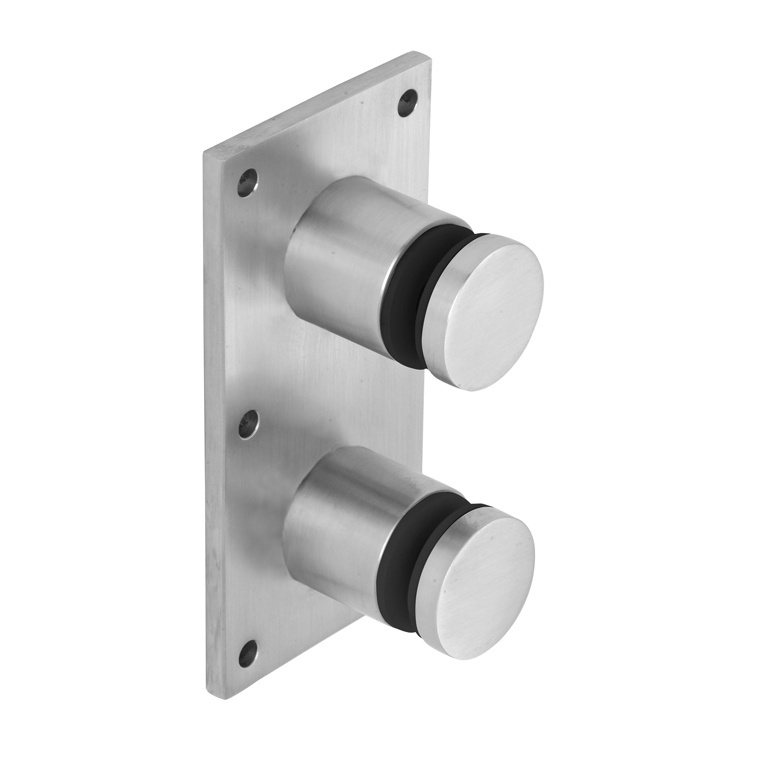

Our new Glass Rail Standoff Fittings can be used two ways to mount glass up to ¾ inches (19 millimeter) thick. The Drill-Through Method will allow flush mounting of the glass to the surface of the wallboard. The steel back plate can also be fastened directly to steel supports, raising the glass off of the surface.
This versatile Standoff Fitting features 2 inch (51 millimeter) diameter caps on threaded bolts to secure the glass. The 2 inch (51 millimeter) diameter Standoffs are fastened to a 3/8 inch (9.5 millimeter) thick stainless steel plate that is pre-drilled for mounting.

Color:                         Brushed Stainless

Mounting Plate Height: 8 in. (203.2 mm)
Mounting Plate Width:  4 in. (101.6 mm)
Glass Fabrication:       Two 3/4 in (19 mm) Diameter Holes Per Fitting

Minimum Order: 1 Each

Important Note:
For Use With ½” or 3/4" (12 or 19 mm) Tempered Glass (Do not use with raw or annealed glass). NOTE: Maximum Bracket Spacing is 24” (610 mm) on Center with 48” (1219 mm) Maximum Glass Panel Widths
