Category: CRL Cap Assemblies for 1/2" Standoffs

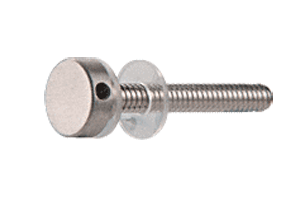

CRL Brushed Stainless Standoff Cap Assembly for 1/2" Standoff Bases
SKU: CAP12BS
UPC:
Product Details:
Choice of Two Matching Finishes
CRL 1/2 Inch Standoff Cap
Assemblies are used in conjunction with the CRL 1/2 Inch Standoff Bases to
create displays, furniture or signage. Available in brushed
stainless and polished stainless finishes, they can be used indoors
or outdoors.
Glass fabrication requires 5/16 inch (7.9
millimeter) diameter hole for installation.
Color: Brushed
Stainless
Diameter:
1/2 in (12 mm)
Allen Screw Length: 1-1/2 in (37 mm)
Thread
Size:
10-24
Additional Product
Information:
Cap Assemblies consist of: one Cap, Allen
Screw and two Clear Vinyl Washers.
For installation, the recommended method to
tighted the Cap is to insert a 5/64 inch (1.984 millimeter) hex key
or drill into the hole located in the side of the Cap.
Important Note:
Due to the diversified variety of
applications, weight limitations for Standoff Systems are dependent
upon wall or substrate anchoring.
