All 316 Alloy Brushed Stainless Steel Construction
Ideal for Interior Room Applications
For Use With 3/8" (10 mm) or 1/2" (12 mm) Tempered
Glass
Comes With All Fasteners Needed for Either Flush Mount
(Countersunk) or Surface Mount (Straight Hole) Glass
Fabrication
CRL has expanded the hardware line and functionality of the
Laguna Series Pivot Door System, providing a
contemporary look to interior home or office partitions. Made of
high-grade 316 alloy stainless steel, it will bring years of
reliable function and modern beauty to your projects. The CRL
Laguna Pivot Door System can be used with free-swinging doors, or
doors controlled by floor mounted door closers. The hardware can be
bought in sets or by individual components. CRL provides you with
all of the glass fasteners for either flush mounting, which
requires a countersunk hole, or surface mounting, where a straight
hole is needed. The glass fasteners will accommodate either 3/8
inch (10 millimeter) or 1/2 inch (12 millimeter) tempered glass.
Laminated glass cannot be used with this type of hardware.
Standardized sets allow easy planning and purchasing for a number
of basic configurations.
NOTE: Care should be taken when using this
system in exterior applications to ensure that air and water
infiltration can be minimized.
Color: Brushed Stainless
Minimum Order: 1 Each
Additional Product Information:

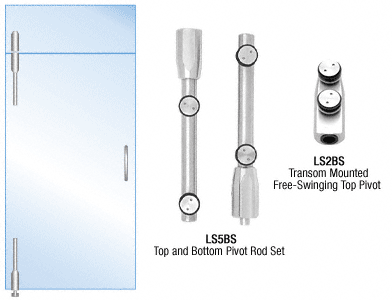

The LS24BS Hardware Set consists of:
One each LS2BS Transom/Sidelite Free-Swinging Top Pivot
One each LS5BS Top and Bottom Pivot Rod Set
(Closers or Bottom Pivots are sold separately)
Important Note:
System Limitations:
Maximum Door Weight:176 Lbs. (80 kg)
Maximum Panel Width:47-1/4" (1.2 m)
Maximum Panel Height:98-7/8" (2.5 m)
|
 |
