Product Details:

Designed to Work With Floor Closers and Free-Swinging Bottom Pivots
Allows for 180 Degree Door Swing
For 3/8" or 1/2" (10 or 12 mm) Glass

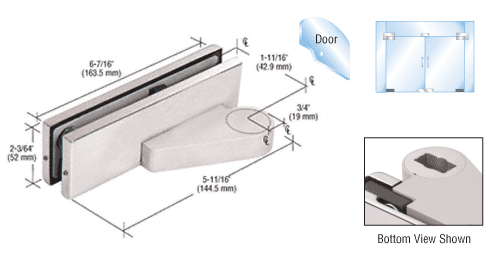

The CRL Bottom of Door Offset Patch Fitting is designed to work with any of our other Offset Fittings. Allowing for a full 180 degree door swing, these Fittings are available for right or left hand configurations, in your choice of brushed or polished stainless steel. Glass fabrication templates are included in the box.


Color: Brushed Stainless
Glass Thickness: 3/8 or 1/2 in (10 or 12 mm)
Hand: LH
Minimum Order: 1 Each

Additional Product Information:
INCLUDES:
-High Density Cast Body
-Cover Plates (Finish of Your Choice)
-Gasket for 3/8 in (10 mm) or 11/2 in (12 mm) Glass
-Template and Instructions
SPECIFICATIONS:
For Use With:
-CRL8300 Series Floor Closers
-CRL8400 Series Floor Closers
-INT402 Bottom Free Swinging Pivot
-INT403 Adjustable Bottom Free Swinging Pivot
-INT406 Adjustable Bottom Free Swinging Pivot
Glass Fabrication Required:
-One 3/4 in (19 mm) Diameter Hole and Corner Notch
