Category: DB110 Series Rail Mount Handles
CRL Brushed Stainless Left Hand Reverse Rail Mount Keyed Access "Z" Exterior Bottom Securing Deadbolt Handle
SKU: DB110Z4RKBS
UPC:
Product Details:
- For 1/2" or 3/4" (12 or 19 mm) Tempered Glass
Doors
- Custom Sizes Ship Within One to Two Weeks
- Available with a Wide Selection of Exterior Fixed Pull
Handles on Special Order
- Certification: ANSI/BHMA A156.16 Grade 1
|

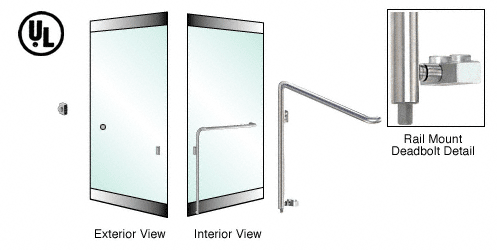

This CRL Glass Door Deadbolt Handle
is
designed to allow maximum view and a contemporary look to 1/2 or
3/4 inch (12 or 19 millimeter) tempered glass doors. Installations
can be made on single or double doors. For your convenience, we
have designed the handles so they are ready to install on 36 to 48
inch (914 to 1219 millimeter) wide doors ranging in height from 90
to 102 inches (2286 to 2591 millimeters) high without
modifications. Keyed Lock standard on interior and exterior side of
handle. Optional thumbturn to replace keyed lock. Custom Headers
available with your choice of pre-installed hardware. Dustproof
Strike available for doors secured at bottom.
SPECIFICATIONS
Material:
- 1-1/4 Inch (32 millimeter) Diameter Brass or Stainless Steel
Tubing (1.5 millimeters thick)
Glass Thickness:
- 1/2 or 3/4 Inch (12 or 19 millimeter)
Glass Fabrication: Varies
- Please contact us at
ORDERING OPTIONS
When ordering Deadbolt Handles you must
specify:
- DB100, DB110 or other Interior Handle Series shown on page DC27
in the DC04
catalog
- Exterior Handle Option (page DC29 click
here)
- Right or Left Hand (as viewed from the outside)
- Rail Mount (for doors with full length rails) or Glass Mount
(for doors with patch rails)
- Single or Double Door Strike (for single acting doors)
- Brushed or Polished Stainless, Satin or Polished Brass
Finish
Contact us for specification details and pricing on these handles
for "All Glass" Entrance Doors. Please call (888) 663-9830, or by
e-mail.
