Category: 100 Series Components

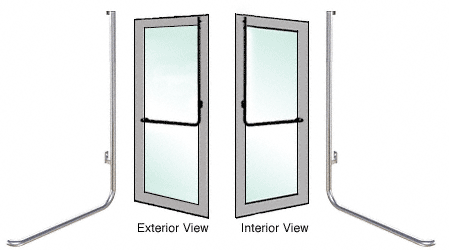

CRL Brushed Stainless Left Hand Reverse Aluminum Door Mount Exterior Top Securing Dummy Handle
SKU: DH100D4ABS
UPC:
Product Details:
- For 1/2" or 3/4" (12 or 19 mm) Tempered Glass
Doors
- Custom Finishes Ship Within One to Two
Weeks
- Available with a Wide Selection of Exterior Fixed Pull
Handles on Special Order
- Certification: ANSI/BHMA A156.16 Grade 1
|
This CRL Glass Door Dummy Handle is
designed to allow maximum view and a contemporary look to 1/2 or
3/4 inch (12 or 19 millimeter) tempered glass doors. Installations
can be made on single or double doors. The handles are designed to
fit on 36 to 48 inch (914 to 1219 millimeter) wide doors ranging in
height from 80 to 108 inches (2032 to 2743 millimeters) high.
Custom Headers available with your choice of pre-installed
hardware. Dustproof Strike available for doors secured at
bottom.
SPECIFICATIONS
Material:
- 1-1/4 Inch (32 millimeter) Diameter Brass or Stainless Steel
Tubing (1.5 millimeters thick)
Glass Thickness:
- 1/2 or 3/4 Inch (12 or 19 millimeter)
Glass Fabrication: Varies
ORDERING OPTIONS
When ordering Dummy Handles you must
specify:
- DH100, DH110 or other Interior Handle Series
- Exterior Handle Option (
- Right or Left Hand (as viewed from the outside)
- Rail Mount (for doors with full length rails) or Glass Mount
(for doors with patch rails)
- Brushed or Polished Stainless, Satin or Polished Brass
Finish
