Product Details:

North American 2-3/4" (70 mm) Pivot Setback
High Density Cast Body
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass

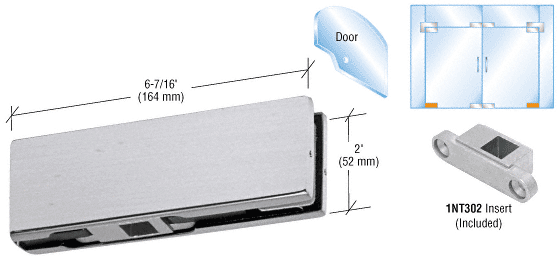

The CRL Bottom Door Patch Fitting includes the No. 1NT302 Insert for use with tapered square style spindle Casma Floor Closers or 1NT404 Free Swing Pivots. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8 or 1/2 inch (10 or 12 millimeter) Glass.

Color: Brushed Stainless

Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required: One 3/4 inch (19 millimeter) diameter hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD BE USED.
