CRL Brushed Stainless Finish Bottom Door Patch with INT301 Insert
C.R. Laurence CRL Brushed Stainless Finish Bottom Door Patch with INT301 Insert | PH10CBS
Category: CRL Bottom Door Patch Fitting with Insert No. 1NT301
CRL Brushed Stainless Finish Bottom Door Patch with INT301 Insert
SKU: PH10CBS
UPC:

$70.82 (20% off)

$59.02

Product Details:

For 3/8" or 1/2" (10 or 12 mm) Glass

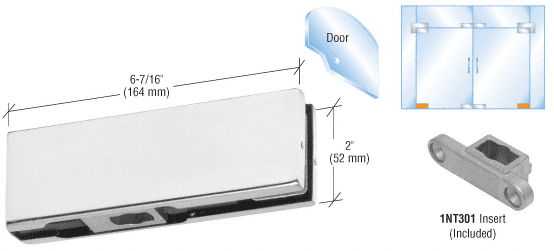

The CRL Bottom Door Patch Fitting includes the Catalog Number 1NT301 Insert for use with tapered style spindle Floor Closers or Free Swing Pivots. Covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8 or 1/2 inch (10 or 12 millimeter) Glass.

Color: Brushed Stainless

Minimum Order: 1 Each

Additional Product Information:
Glass Fabrication Required:
One 3/4 inch (19 millimeter) diameter hole and corner notch.
Important Note:
THE FOLLOWING GUIDELINES ARE TO BE USED WHEN MAKING A DOOR USING THIS HARDWARE:
MAXIMUM HEIGHT: 108" (2744MM)
MAXIMUM WEIGHT: 176 LBS (80KG)
MAXIMUM WIDTH: 43" (1100MM)
IF THE DOOR EXCEEDS ANY OF THESE LIMITATIONS FULL DOOR RAILS SHOULD BE USED.
