Product Details:

Available in Several Stock Lengths from 24" to 84"
Heavy Wall 1-1/4" (32 mm) Stainless Steel Tube
For use with 3/8" (10 mm) and 1/2" (12 mm) Glass Doors

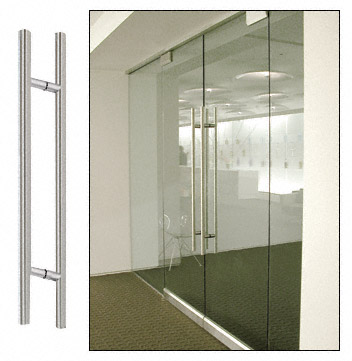

CRL Extra Length Ladder Style Pulls are available in several lengths and are constructed of 1-1/4 inch (32 millimeter) diameter heavy-wall stainless steel tube. The Ladder Style Pulls add a touch of class and a contemporary look to any opening. Intended for back-to-back mounting with full size glass doors of 3/8 and 1/2 inch (10 and 12 millimeter) thick glass.
You can also use 60LPBS 60" (1524 mm) or 48LPBS 48" (1219 mm) Brushed Stainless Steel Ladder Style Pull Handles as an option, to the Laguna Series Sliding Glass Door Systems, however these pulls slightly reduce the door opening access.


Color: Brushed Stainless

Overall Length: 42 in (1067 mm)
Center-to-Center Mounting: 30 in (762 mm)
Minimum Order: 1 Each


Additional Product Information:
INCLUDES:
One Set: Ladder Style Pull Handles (Back-to-Back Mounting)
Two Each: Through-Bolts for Glass Mounting
SPECIFICATIONS
For Use With:
3/8 Inch (10 millimeter) or 1/2 Inch (12 millimeter) Glass
Construction:
1-1/4 Inch (32 millimeter) Diameter Heavy Wall Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8 Inch (16 millimeter) Diameter Holes

For the thicker doors, please, use TB4CH bolt, which permits mounting of pulls to 1-3/4" (44.5 mm) thick, and in majority cases even up to 2" thick, aluminum, wood or hollow metal doors.
