Product Details:

For 3/16" to 1/4" (5 to 6 mm) Thick Glass
Requires Two 3/8" (10 mm) Holes Per Hinge

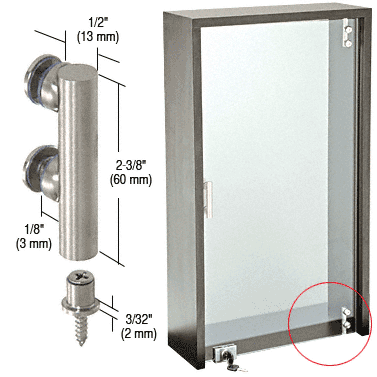

These new CRL Brushed Stainless Pivot Hinges are unique in design and will provide a contemporary, high tech look to your cabinet. Installed into wood at both cabinet top and bottom, these free-swinging Hinges are an excellent choice for many cabinet applications.
The maximum recommended door width is 15 inches (381 millimeters) and the maximum weight should not exceed 22 pounds (10 kilograms).
Allow 1/8 inch (3 millimeters) clearance between glass door and cabinet.

These Pivot Hinges match the design of our new Cabinet Door Pivot Pull, Cat. No. 12PVP.

Includes vinyl macaroni on screws and drilling template. Comes two per pack.

For a matching finish lock, select either Cat.No. LK43 for single doors or Cat.No. LK47 for double doors.
