Category: 4" Tapered Sidelite Rails - Custom Length
CRL Brushed Stainless Anodized 4" Tapered Sidelite Rails - 120 in Long
SKU: SR4TBSA3812SL
UPC:
$297.85
(20% off)
$248.21
Product Details:
- Extruded Saddle Is Reversible to Match 1/4" and 3/4"
(6.3 and 19 mm) Door Clearances
- Dry Glaze Push-In Top Load Glazing Gasket for 3/8" and
1/2" (10 and 12 mm) Glass
- Several Finishes to Match CRL Door Rails
|
The tapered profile of the CRL Sidelite
Rails match perfectly with our Four Inch (101.6 millimeter) Tapered
Style Door Rails. Available in several finishes in 120 inch
(3.05 meter) lengths and in extra long 240 inch (6.10 meter)
lengths, they match heights to both floor mounted and 1/2 inch (13
millimeters) threshold doors using our Reversible Saddle. Use the
Sidelite Rails alone for your upper rails, and with our Aluminum Neoprene Setting Blocks,
lifting the glass into the upper rail and lowering into the bottom
rail. This will give you a 9/16 inch (14 millimeters) glass
retention in both the top and bottom channels. Complete the job by
installing the Roll-In EPDM
Gaskets and matching finish End Caps.
One each per package.

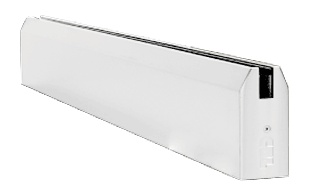

Shown with End Caps which must be ordered separately.
